DTF Printer

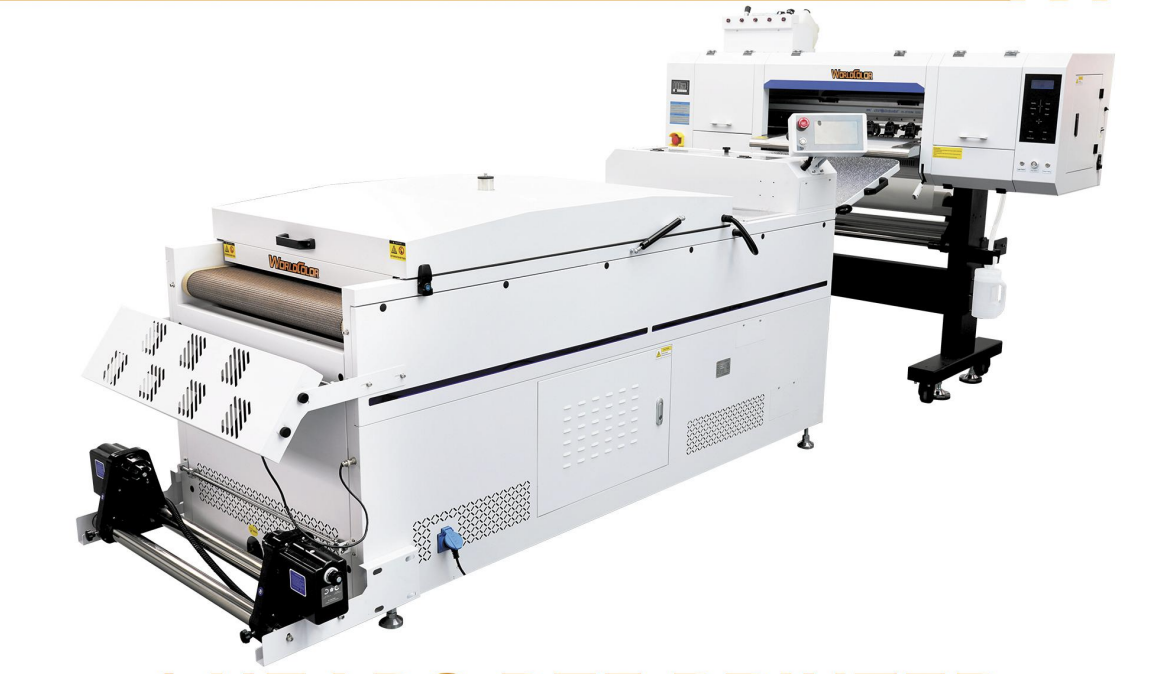

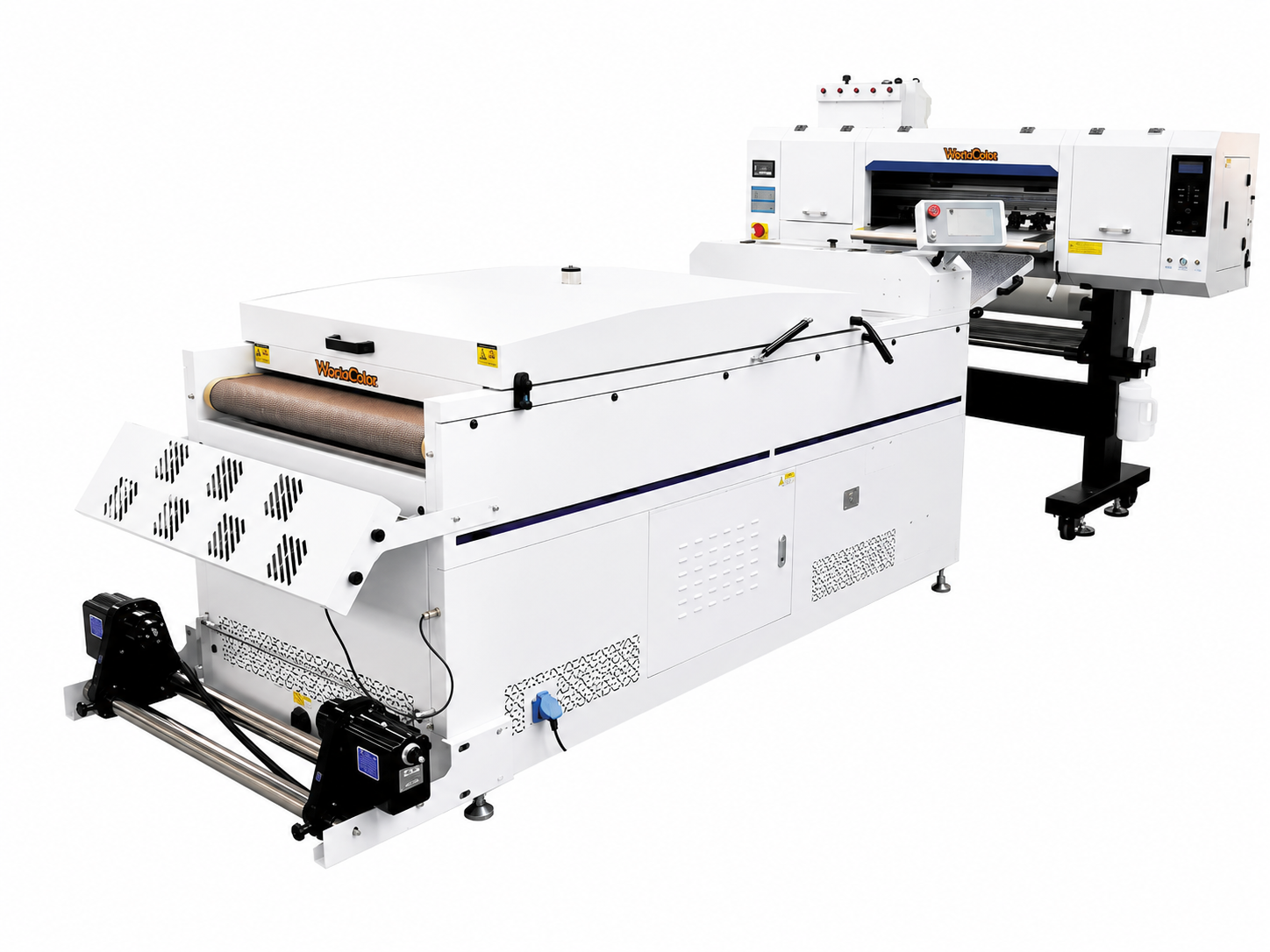

4 HEADS DTF PRINTER

Built for cost-effective, high-volume printing, this economy DTF printer is equipped with four 13200A1 printheads for fast and consistent output. Its user-friendly design, precision film feeding system, and integrated powdering and curing unit ensure reliable performance with minimal maintenance.

Key Specifications:

Printheads: 4 × 13200A1 High-Speed Printheads
Film Feeding: Precision Tension Feeding System for Accurate Media Handling
Integrated Unit: Powdering, Shaking, Heating & Film Collecting in One System
Design: Simple Structure for Easy Installation and Low-Maintenance Operation

+977-9851058313

Technical Parameters

Parameter	E8074-3	W2070-3Pro(4)
Print head	Epson 13200-A1*4	Epson 13200-A1*5
Print width	600mm	600mm
Resolution	3200dpi	3200dpi
Color	(C/M/Y/K+White)	(C/M/Y/K+white)
Ink	Pigment ink	Pigment ink
Power supply	220V 50HZ/60HZ,1500W	220V 50HZ/60HZ,1500W
Speed	4pass:26m²/h 6pass:18m²/h 8pass:12m²/h	4pass:26m²/h 6pass:18m²/h 8pass:12m²/h
Operation environment	Temperature; 15-30°C, humidity:50RH-60RH	Temperature; 18-30°C, humidity:40RH-70RH
Power	1400W	—
Ink Supply System	—	CISS continuously ink supply system
Package size	2300760870mm	2300760870mm
Weight	255kg	275kg
Shaker	DF-700L	DF-800L(A)
Print width	600mm	700mm
Heating	6PCS775MM (3PCS1000W. 3CPS*600W)	Intelligent 10 heating tubes infrared heating
Package size	190011501280mm	231011501280mm
Weight	305kg	381kg
