CTN-Portable handheld fiber laser marking machine

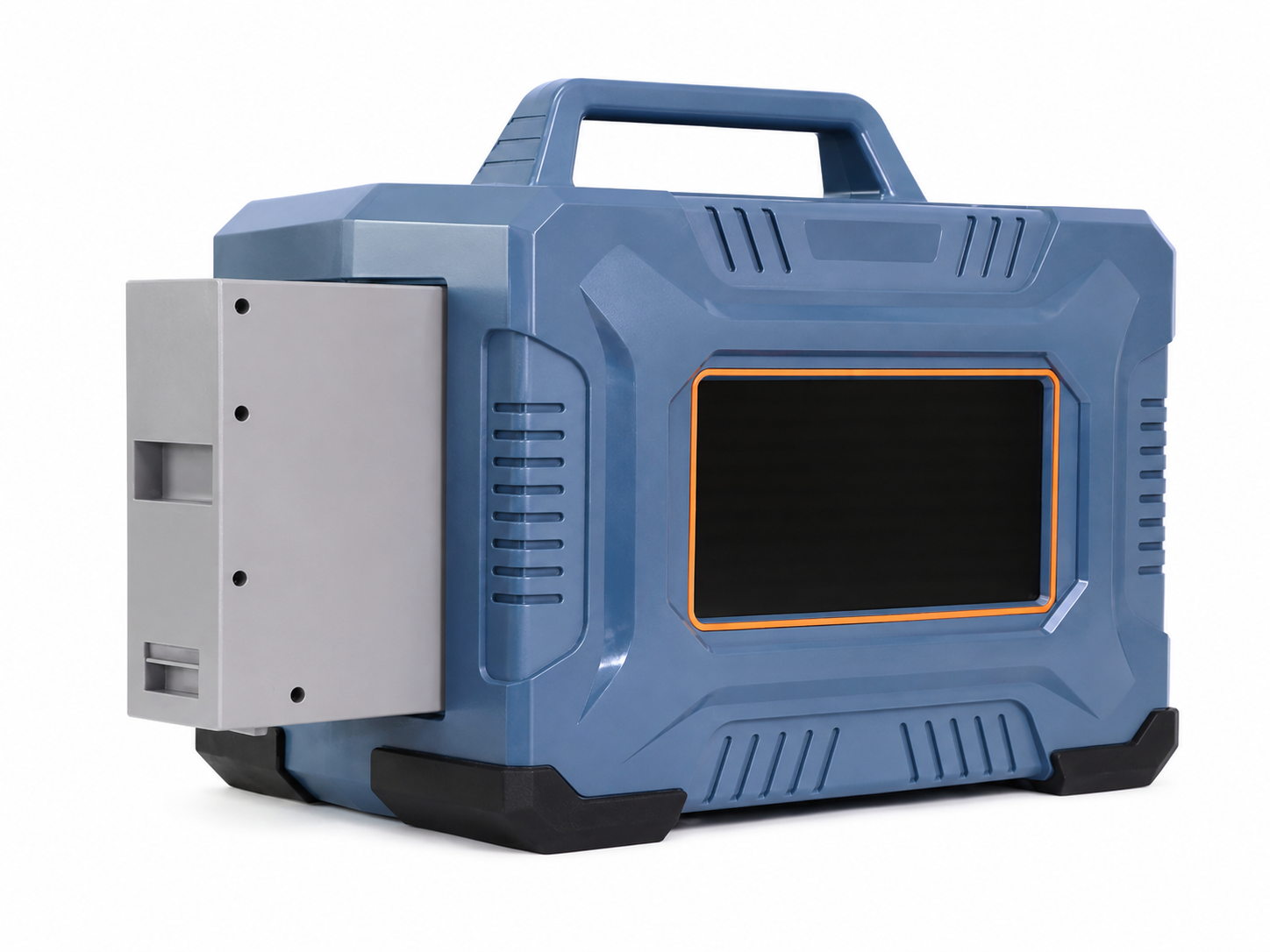

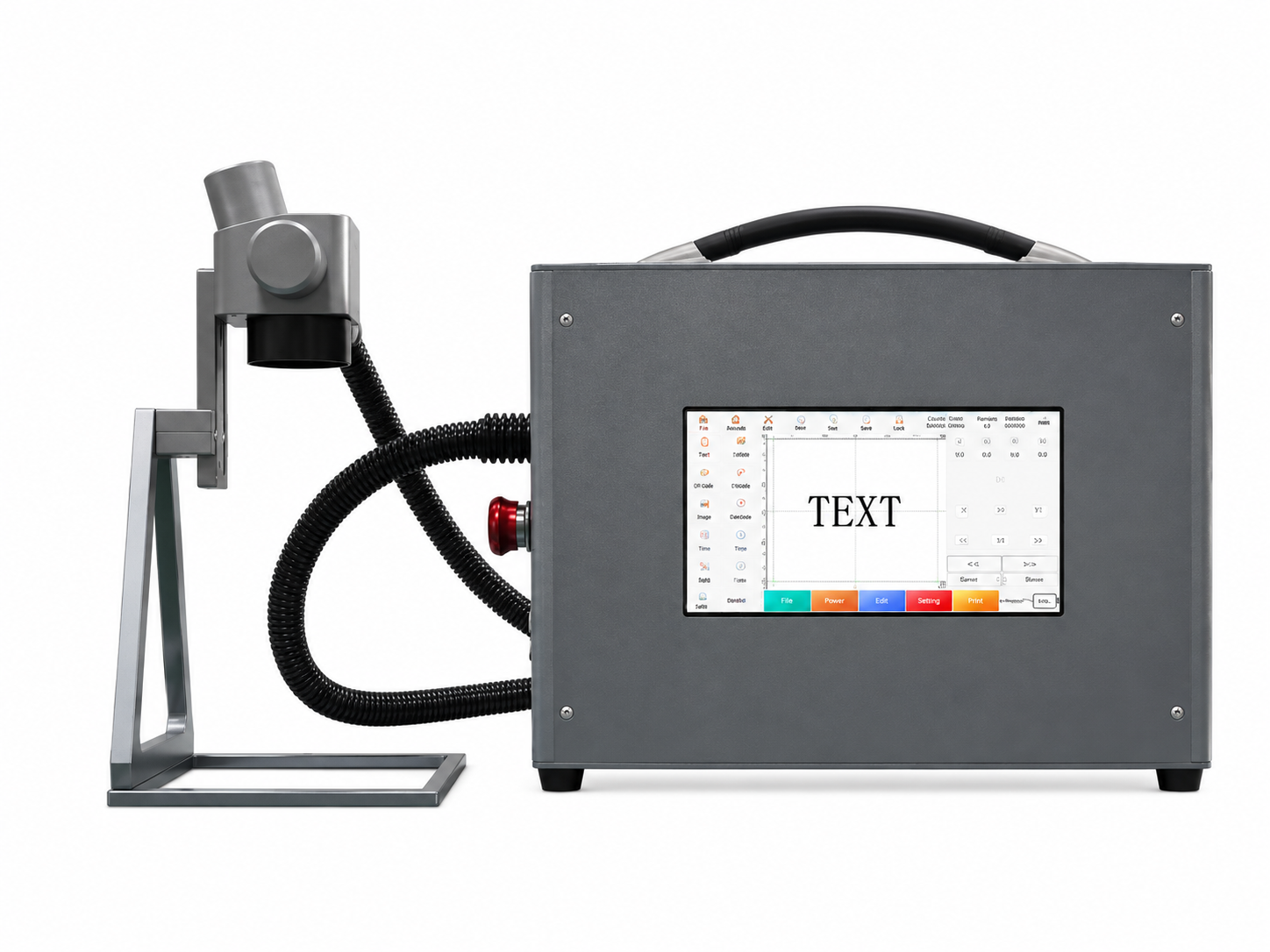

The CTN-Portable Handheld Fiber Laser Marking Machine is a compact and versatile marking solution designed for on-site and flexible industrial applications. Featuring advanced fiber laser technology, a lightweight handheld design, and high-speed marking performance, it delivers precise, permanent markings on a wide range of metal and selected non-metal materials with exceptional accuracy and reliability.

Key Specifications:

Portable Handheld Design: Lightweight and Easy to Operate for On-Site and Large Workpiece Marking
High-Precision Fiber Laser: Produces Clear, Permanent, and High-Resolution Markings with Excellent Accuracy
Reliable Performance: Long-Life Fiber Laser Source with Stable Operation and Low Maintenance Requirements
Wide Material Compatibility: Suitable for Stainless Steel, Aluminum, Brass, Copper, Iron, Plastics, and Other Industrial Materials

+977-9851058313

Technical Parameters

Model	LMB20/LMB30 /LMB50 LM20 /LM30 /LM50
Machine material	engineering plastic
Laser type	Optical Fiber Laser Generator
Laser power	20W/30W/50W
Laser wavelength	1064 nm
Maximum pulse energy	0.7mJ/1mJ/1.1mJ
Frequency adjustable range	27-170 kHz
Print way	High-precision two-dimensional scanning mode
Scaling speed	≤7000mm/s
Operation interface	Built-in 7-inch touch screen,Linux operating system
Cooling method	Built-in air cooling
Type of marking line	lattice and vector all-in-one machine (both lattice andvector)
Reflector size	Standard standard:10mm
Scope of marking	100mm*100mm
Location mode	Red light positioning
Number of scaled characters	Any row within the marking range
Print out rate	600Character /second(specific speed is related to product material, print content)
Language	Simplified Chinese,English,Korean,German,Arabic numerals,ect
File format	png, jpg, bmp, dxf, plt, svg
Barcode /QR code	CODE25、CODE39、CODE49、CODE93、CODE126 、CODE128,EAN13, EAN128, PDF417, CODBAR, UPCA, UPCA-CHK, UPCE-CHK, DataMatrix, QRCode,etc, support barcode size, barcode level can beset, support point mode, circle mode,rectangle mode etc
Source	220V/110V
Maximum power consumption	20W:120W /30W:150W/50W:200W
Machine net weight	8.4KG 6KG
Full power Continuous working hours	6-8 hours (lithium battery)
Adapt to the temperature	0-40℃
Relative humidity of environment	30-85 RH (no-condensation)
Appearance size	330mm280mm200mm
Type of marking	QR code,bar code,Chinese,English,date,logo,pattern,ect
