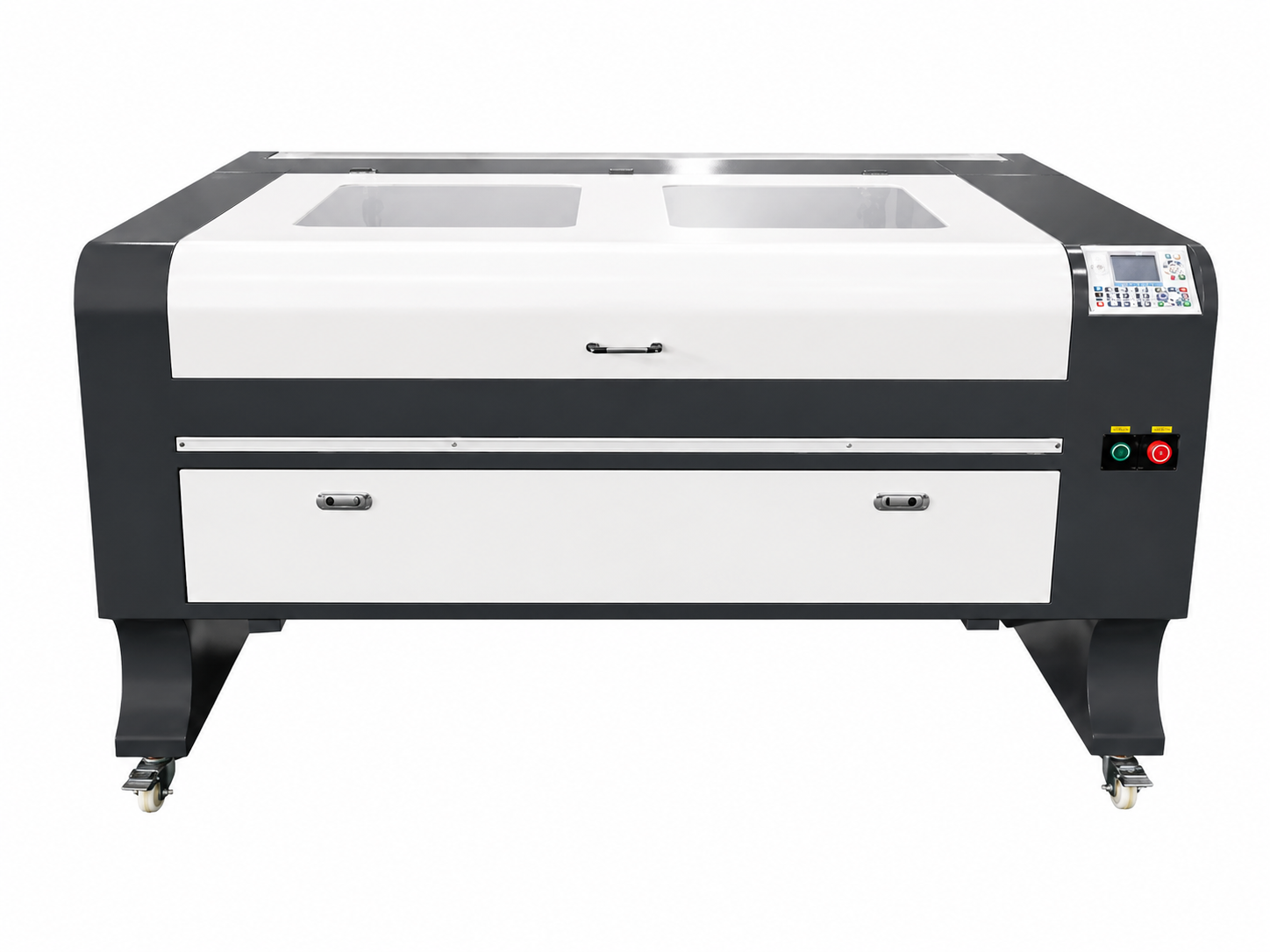

CTN-1610 CO2 Laser engraving & cutting machine

Laser Cutting/ Engraving Machine

CTN-1610 CO2 Laser engraving & cutting machine

The CTN-1610 CO₂ Laser Engraving & Cutting Machine is a high-performance industrial laser solution designed for large-scale engraving and cutting applications. With an extended working area, advanced CO₂ laser technology, and a durable mechanical structure, it provides precise processing, smooth cutting edges, and consistent output for professional production environments. It is ideal for businesses requiring high efficiency, accuracy, and versatility across a wide range of non-metal materials.

Key Specifications:

  • Extra-Large Working Area: Spacious Design for Processing Large Materials and Supporting High-Volume Production
  • High-Precision CO₂ Laser System: Delivers Detailed Engraving, Accurate Cutting, and Smooth Finishing Quality
  • Heavy-Duty Machine Structure: Robust Frame Design Ensures Stable Operation and Long Service Life
  • Versatile Material Processing: Suitable for Acrylic, Wood, Leather, Fabric, MDF, Rubber, and Other Non-Metal Materials
+977-9851058313

Technical Parameters

Effective working area 1600*1000mm
platform automatic feeding net belt
Laser power 100W/130W/150W
Laser type Sealed CO2 laser tube
Engraving Thickness 0-2mm( depends on materials )
Cutting Thickness 0-20mm( depends on materials )
Engraving Speed 1-1000mm/s
Cutting Speed 1-300mm/s
Cooling system Water cooling protechion system
Lift range Electric regulation 0-250mm
Output software Corellaser/Autolaser/RDworksV8/LaserCA
Water protection Yes
Positioning way Red light positioning
Machine size 2250*1500*750(mm)
Positioning accuracy <0.05mm
Location precision ≤0.01mm
Packaging Wooden crate
Power supply AC220V/110V50HZ/60HZ
System environment WindowXP/Win7/8/10
N.W. 350KGS
G.W. 380KGS
