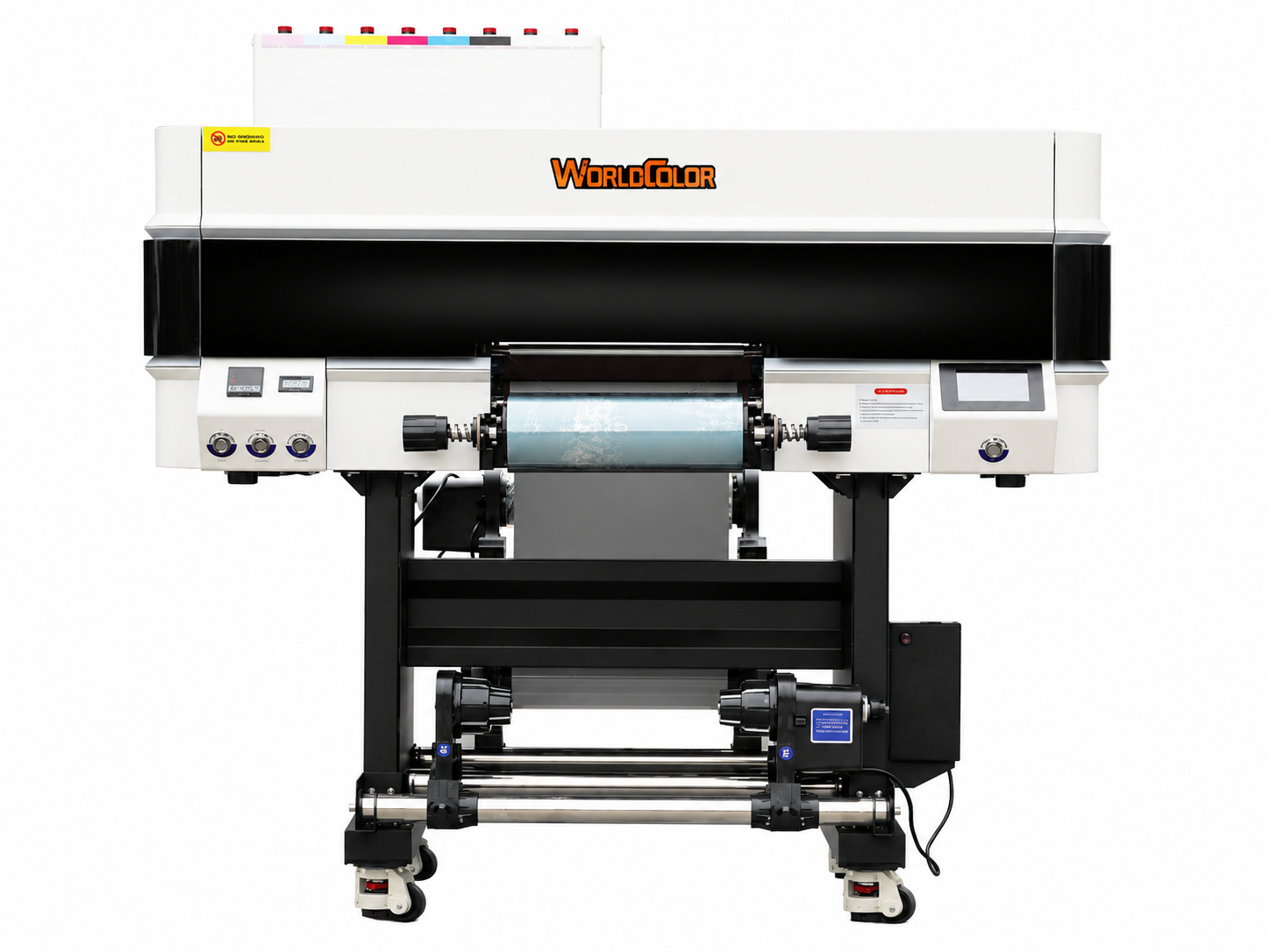

X5 UV DTF PRINTER

A smart and compact UV DTF roll-to-roll printing solution designed for high-quality transfer production. With advanced printhead options, intelligent control systems, and eco-friendly UV ink technology, it delivers vibrant colors, smooth operation, and reliable performance.

Key Features:

High-Speed Printing Performance – Supports Epson F1080 / XP600 printhead options for fast and detailed output.
Flexible Color Configuration – Multiple printing modes available: White + CMYK + Varnish, Glue + White + CMYK + Varnish, and more.
Smart Control System – Equipped with automatic ink alarm, temperature control, and tension management for stable printing.
Strong & Precise Structure – High-precision aluminum body with servo motor drive system ensures accurate and consistent results.

+977-9851058313

Technical Parameters

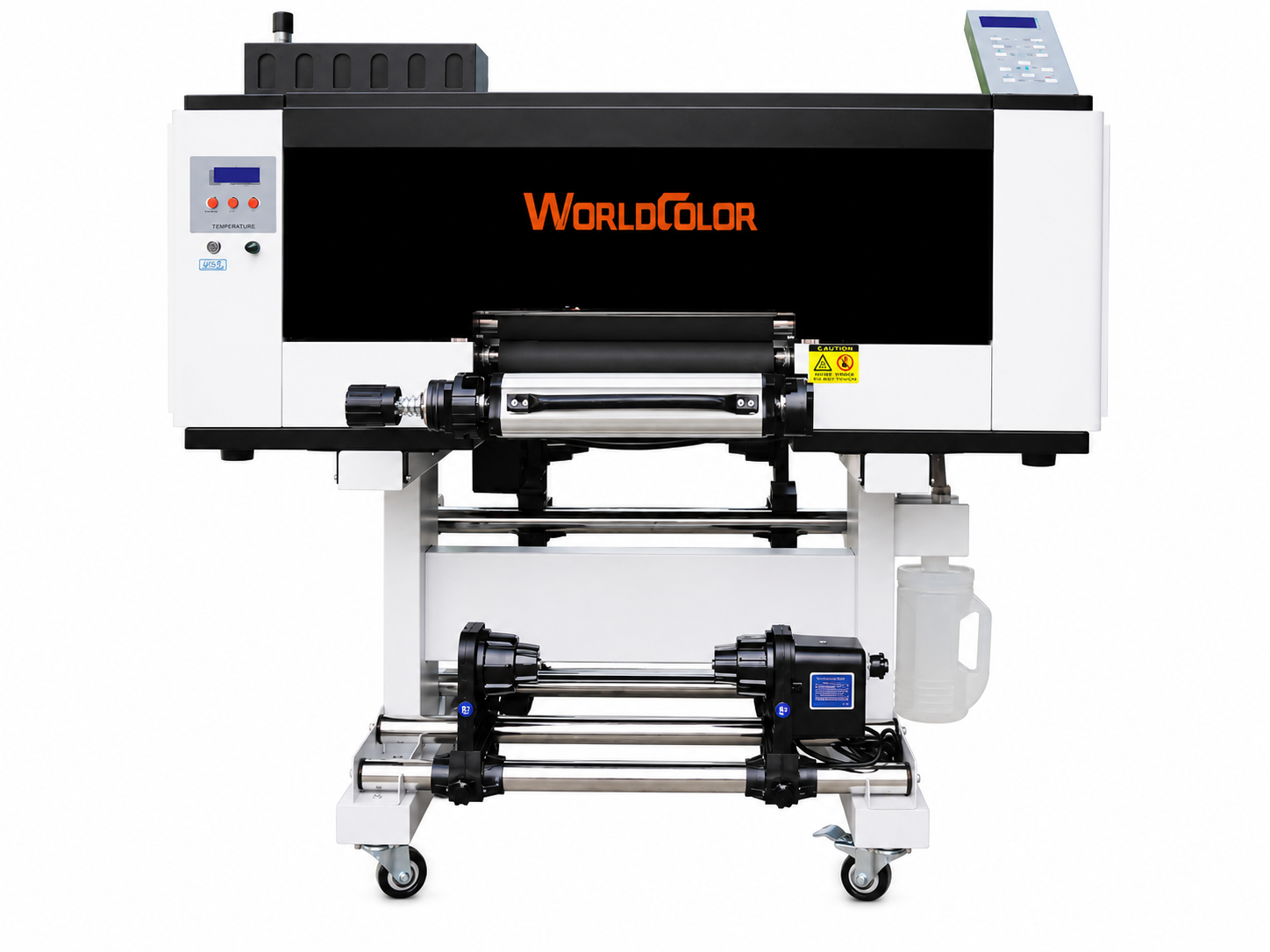

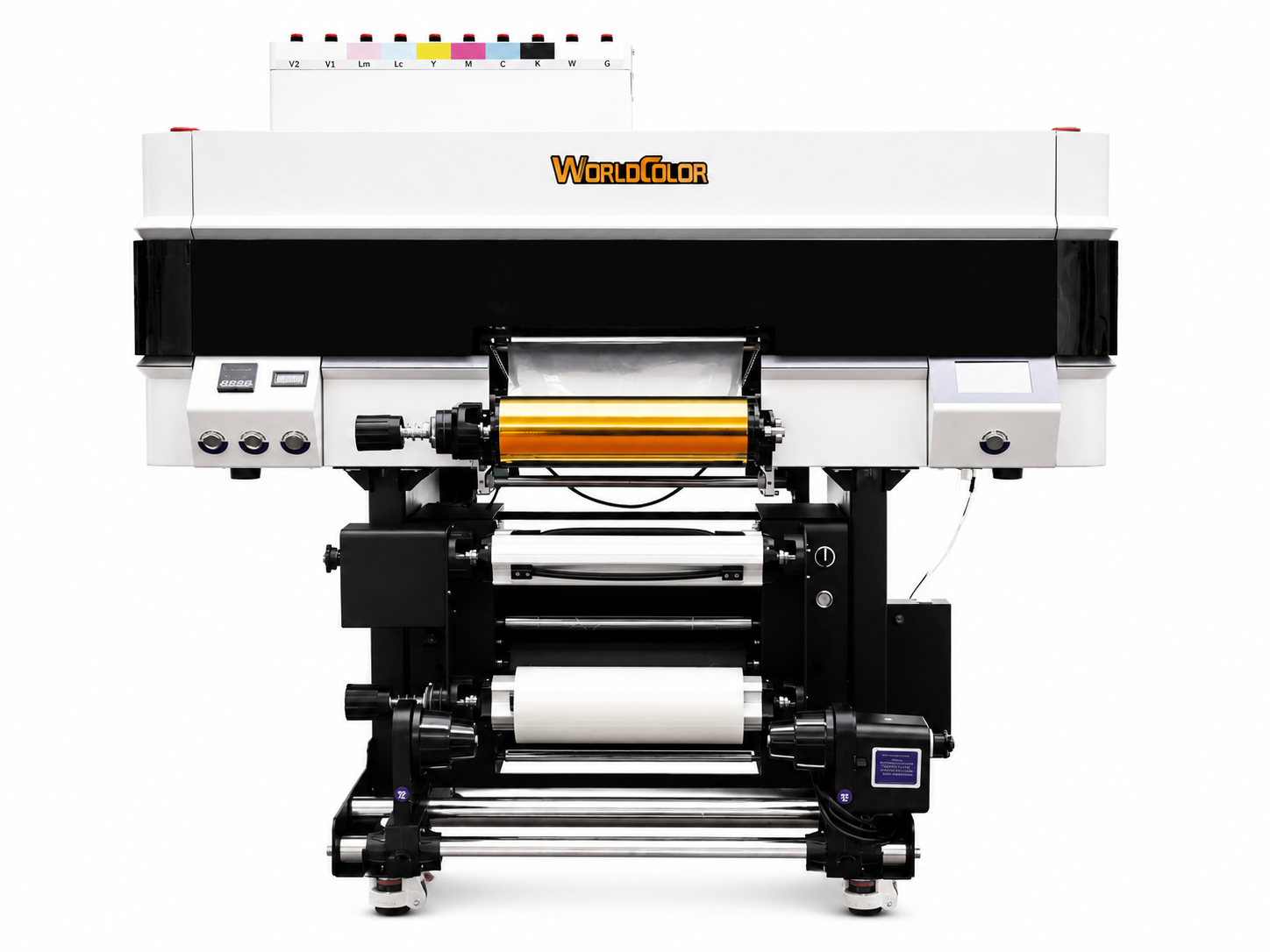

Model	W2030-X5	W8033-X5	W8034-X5
Print head	Epson F1080-A13/11600U12	Epson F1080-A13 /I1600-U13	Epson F1080-A1*4
Printing speed	6passs: 3 m/h 8passs: 2 m/h	6passs: 4.3 m²/h 8passs: 3.2 m/h	6passs: 3 m/h 8passs: 2 m/h
Board	—	Sunyung/Honson Board	honson Board
Resolution	1080dpi	—	—
Print size	300 mm	300 mm	300 mm
Ink	UV ink	C/M/Y/K/Lc/Lm(W)(V)	C/M/Y/K/Lc/Lm(W)(V)
Ink Supply system	CISS Continuously Ink Supply System	—	—
UV curing system	—	Air cooling system + LED UV lamp(Two)	Air cooling system + LED UV lamp(Two)
Circuit board	Auto up&down carriage	Auto up&down carriage	Auto up&down carriage
Power supply	220V 50HZ/60HZ(110v,Option)	220V 50HZ/60HZ(110v,Option)	220V 50HZ/60HZ(110v,Option)
Working Condition	Temperature 18–30°C,Humidity 40-70%	Temperature 18-30°C,Humidity 40-70%	Temperature 18-30°C,Humidity 40-70%
Rip software	Photoprint	Photoprint	Maintop/PP
Package size	1520730750mm	18237607327mm	18501080740mm
PC requirements	Win7/Win10	Win7/Win10	Win7/Win10
Weight	130kg	150kg	178kg
Warranty	One year(Not include head and ink system)	One year(Not include head and ink system)	One year(Not include head and ink system)
