UV 9060 PRINTER

Warranty One Year (Not include head and ink system)
UV Printer

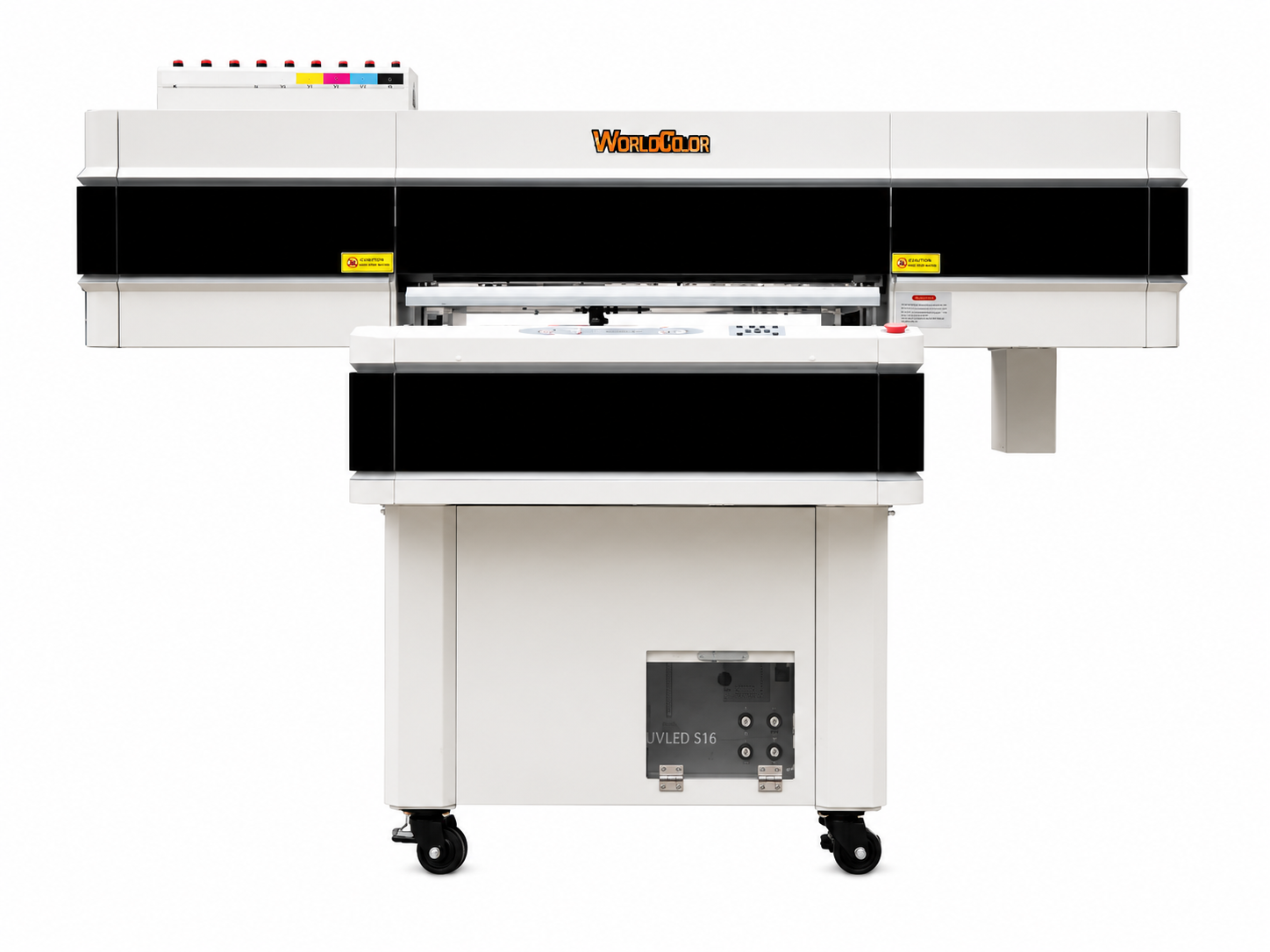

UV 9060 PRINTER

A high-performance UV DTF printing solution delivering vivid, lifelike images with excellent durability and premium finishing effects. Built with advanced UV curing technology and smart ink management, it ensures stable performance and long-lasting print quality.

Key Features:

  • High-Resolution Printing – Equipped with 3/4×F1080-A1 or 13200-U1 printheads for sharp and detailed output.
  • Durable Print Quality – UV-resistant, scratch-resistant, solvent-resistant prints with high gloss and long-lasting performance.
  • Advanced UV Technology – Compatible with various printing media using efficient UV curing technology.
  • Smart Ink Management & Stable Design – White ink circulation system prevents ink settling, while balanced structure ensures smooth and stable printing.
+977-9851058313

Technical Parameters

Model UV 9060 UV 9060-3(Pro)
Print head Epson F1080-A1*3 Epson 13200-U1*4
Print width 900*600mm 900*600mm
Printing height 150mm 15CM or 29CM
Resolution 1080dpi 3200dpi
Ink Hard UV ink + Flexible UV ink CMYK+W+V+G
Color CMYK LC LM +W+ Varnish CMYK+W+V+G
Ink supply Big tank 500ml, White ink with stirring motor Ink tank 500ml, White ink with stirring motor
RIP software Photoprint Photoprint
Printing material Leather, Acrylic, Glass, metal, PVC,PE, Wood etc Leather, Acrylic, Glass, metal, PVC,PE, Wood etc
Power supply 220V 50HZ/60HZ(110v,Option) 220V 50HZ/60HZ(110v,Option)
Speed 4pass:3m²/h 8pass:1.5m²/h 12pass:1m²/h 6pass:6.5m²/h 8pass:4.8m²/h
Operation environment Temperature; 18-30°C, humidity:40RH-70RH Temperature; 20–30°C, humidity:40RH-60RH
Power consume 1200W 2500W
Ink supply way Positive pressure ink supply, white ink stirring Positive pressure ink supply, white ink stirring
Package size 2000*1380*900mm 2260*1520*8750mm
Weight NW270kg / GW350kg 441kg
Warranty One Year (Not include head and ink system) One Year (Not include head and ink system)
